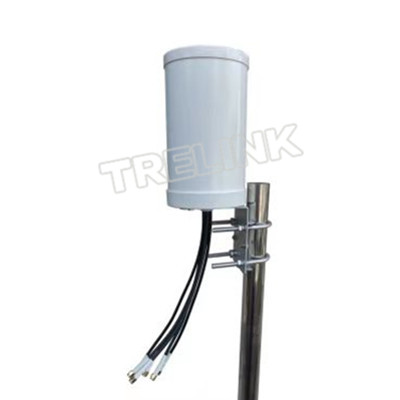

2.4/4.9/7.2 GHz WiFi 6E Multiband 6×6 Omni Antenna

*2.4/4.9/5/5.8 and 6GHz Band capability

*4/6 dBi

*Multi-port 6*6

*Six (6) independent Antennas, single package

*Superior Durability

*Long Performance life in all weather operation

*Compatible with Iot, ZigBee, Bluetooth Applications



  • PRODUCT DETAIL

The omni antenna was built to offer high-performance and throughput while covering  frequencies in 2400-2500/4900-7125 MHz. and ideally suited for 802.11 protocols including 802.11 ax ,Iot Bluetooth,ZigBee and ISM applications.

The omni antenna is designed for all weather operation. Pole mounting hardware is included.

For more WiFi6/WiFi 6e antennas , please feel free to contact our sales to discusss your requirements.


Electrical Specifications
Model TLOD-2472-6V-6S
Frequency Range 2400-2500/4900-7125 MHz
Gain 4/6 dBi
VSWR <1.5:1/2.2:1
Polarization Vertical
Horizontal Beamwidth 360°
Vertical Beamwidth 48°/28°
Input Impedance 50 Ω
Maximum Power 50 W
Lightning Protection DC Ground
Mechanical Specifications
Connector 6* SMA Male
Antenna Dimension Ø128*220 mm
Weight 1300g
Radome Material UV Resistance PVC
Reflector Material PCB
Wind Velocity 210 km/h
Working Temperature -40~+60℃
