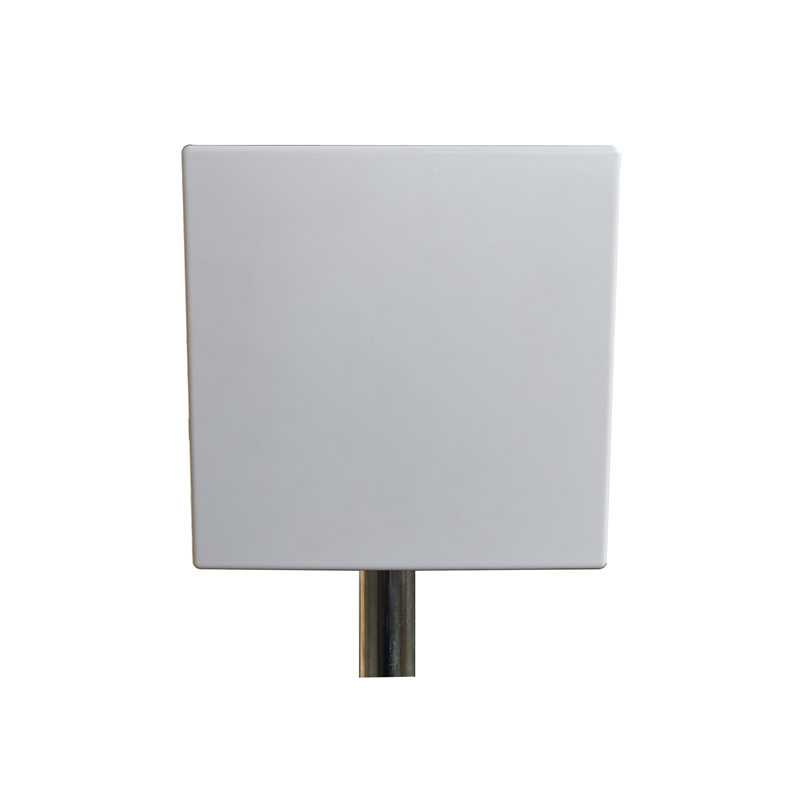

2.4 GHz-2.5 GHz / 4.9 GHz-7.2 GHz 4×4 Dual Pol MIMO Outdoor Flat Panel Antenna

*2.4/4.9/5/5.8 and 6GHz Band capability

*10/13 dBi

*2 x Vertical + 2 x Horizontal Polarization

*Multi-port 4*4

*Superior Durability

*Long Performance life in all weather operation


The WiFi 6/6e 6*6 MIMO Panel Antennas is ideally suited for the IoT wireless M2M,Bluetooth, ZigBee and ISM applications. It is delivering high performance for the 2.4 GHz-2.5 GHz / 4.9 GHz-7.2 GHz bands .

The antenna features 4(four) N-Female connectors for 4*4 MIMO applications .It is weather resistant and waterproof so they are ideal for both indoor and outdoor use.

For more informations , please feel free to contact our sales to discuss your requirements.

Electrical Specifications
Frequency Range2400-2500/4900-7125 MHz
Gain10/13 dBi
PolarizationVertical & Horizontal
Horizontal Beamwidth55°/44°
Vertical Beamwidth50°/40°
F/B Ratio≥ 25 dB
Isolation≥ 28 dB
Input Impedance50 Ω
Maximum Power50 W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector4* N-Female
Antenna Dimension250*250*25 mm
Weight700 g
Radome MaterialWeatherproof ABS
Reflector MaterialPCB
Wind Velocity210 km/h
Working Temperature-40~+60℃
