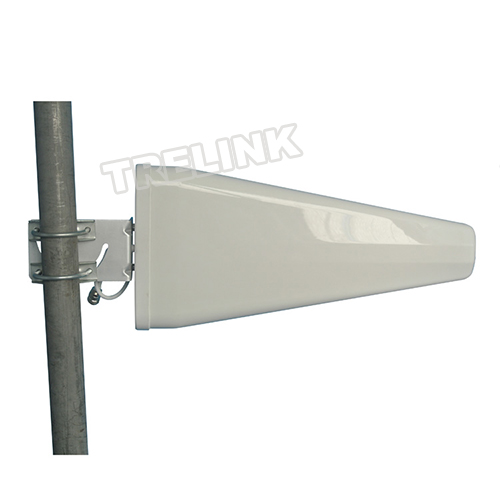

698-960/1710-2700 MHz 11 dBi Log Periodic LTE Antenna

Model No.:TLYD-627-11V

Place Of Origin: China

Brand Name: TreLink

The TreLink TLYD-627-11V is a professional grade Log Periodic Directional Antenna designed to operate from 698-960 MHz and 1710-2700 MHz. It covers  all international cellular, 4G ,mobile and wireless bands. The antenna  is suited for Distributed Antenna Systems(DAS), directional and multipoint IEEE 802.11b/g wireless LANs and public wireless hotspot applications.It can be used to distribute Cellular and WiFi signals throughout a building or area.
This antenna features a UV-Stable ABS radome for all weather operation. All bracket components are corrosion protection.
For more details ,please contact our sales team !

  • PRODUCT DETAIL
  • APPLICATION
  • ADVANTAGE
Electrical Specifications
Model TLYD-627-11V
Frequency Range 698-960 MHz 1710-2700MHz
Gain 9+/-1dBi 10+/-1dBi
VSWR ≤1.5:1
Polarization Vertical
Front To Back Ratio ≥15dB
Horizontal Beamwidth 58° 52°
Vertical Beamwidth 52° 48°
Input Impedance 50 Ω
Maximum Power 50 W
Lightning Protection DC Ground
Mechanical Specifications
Connector N female
Antenna Dimension 460*207*65 mm
Weight 870 g /1.9 lb
Radome Material Weatherproof ABS
Mounting method Fit with nut
Wind Velocity 210 km/h
Working Temperature -40~+60℃

APPLICATION

Applications:

*698-960 MHz /1710-2700 MHz Band

*LTE networks

* Indoor and outdoor directional coverage

*Wireless communications and data transmission system, Repeater

* DAS (Distributed Antenna Systems)

*IEEE 802.11b/g wireless LANs

ADVANTAGE

Advantage:

*Superior Performance, Wideband

*Sealed with radome, Strong protection ability

*Support the popular communications system currently

*Easy To Mount

*All weather operation

*RoHS Compliant
