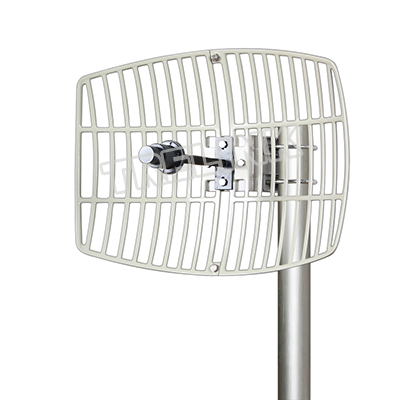

1900 MHz 13 dBi Die Cast Parabolic Grid Antenna

Model No.:TLPG-1900-13-04C

Place Of Origin: China

Brand Name: TreLink

The TreLink 1800 MHz Grid Antenna is a high gain superior performance antenna designed for the 1710-1990 MHz band, and ideally suited for GSM1800 mobile communications system,directional applications, backhaul applications as well as point to point systems.
This antenna has high quality aluminum alloy material for good adapatability of environment, the grid surface is UV powder coated for durability . It is supplied with a tilt and swivel mast mounting kit.
For more details ,pls contact our sales team!

  • PRODUCT DETAIL
  • APPLICATION
  • ADVANTAGE
Electrical Specifications
Model TLPG-1900-13-04C
Frequency Range 1710-1990 MHz
Gain 13 dBi
VSWR ≤1.5:1
Polarization Horizontal or Vertical
F/B Ratio >20 dB
Horizontal Beamwidth 22°
Vertical Beamwidth 30°
Input Impedance 50 Ω
Maximum Power 100W
Lightning Protection DC Ground
Mechanical Specifications
Connector N Female
Antenna Dimension 300*400 mm
Weight 2 kg /4.4 lb
Reflector Material Aluminum
Wind Velocity 210 km/h
Working Temperature -40~+65℃
Mounting Pole Ø40-Ø50 mm

APPLICATION

Applications:

*1710-1990 MHz Band Application

* GSM1800 Mobile Communications System

* Repeater System

*  Terminal Antenna



ADVANTAGE

Advantage:

*Perfect Performance

* Die Cast Aluminum Reflector Grid For Superior Strength

*Folding Structure,Easy To Transport and store

*Low Wind Loading

*Vertical And Horizontal Polarization Mounting

*RoHS Compliant
