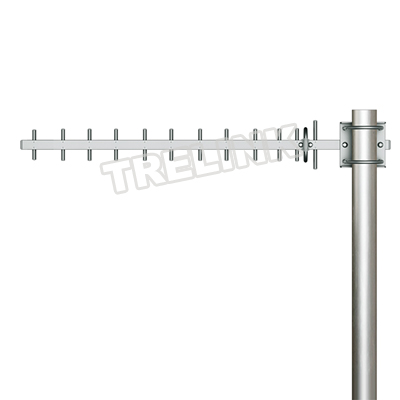

1920-2170 MHz 14 dBi Yagi Directional 3G Antenna

Model No.:TLYA-2000-14-13C

Place Of Origin: China

Brand Name: TreLink

The TreLink 1920-2170 MHz Directional Yagi Antenna is light weight and offers high performance , it is suited  for directional application , Point to multipoint systems, 1920-2170 MHz UMTS & PCS band applications.

This antenna features heavy-duty aluminum and ensure superior durability and long performance life in all weather conditions. It could be installed in vertical or horizontal polarization.
For more details ,please feel free to  contact our sales team.

  • PRODUCT DETAIL
  • APPLICATION
  • ADVANTAGE
Electrical Specifications
Model TLYA-2000-14-13C
Frequency Range 1920-2170 MHz
Gain 14 dBi
VSWR <1.5:1
Polarization Horizontal or Vertical
F/B Ratio ≥16 dB
Horizontal Beamwidth 31°
Vertical Beamwidth 27°
Input Impedance 50 Ω
Maximum Power 100W
Lightning Protection DC Ground
Mechanical Specifications
Connector N Female
Antenna Dimention 600 mm
Weight 0.38 kg /0.8 lb
Reflector Material Aluminum
Wind Velocity 210 km/h
Working Temperature -40~+65℃
Mounting Pole Ø40-Ø50 mm

APPLICATION

Applications:

* 1920-2170 MHz UMTS & PCS band applications

* Directional applications

* Point to Multipoint system



ADVANTAGE

Advantage:

*Stable Performance

*Lightweight and strong aluminum alloyed elements

*Long performance life in all weather operation

* DC Short lightning protection

*Vertical or Horizontal Polarization Mounting

* Includes Mast Mounting Hardware

*RoHS compliant
