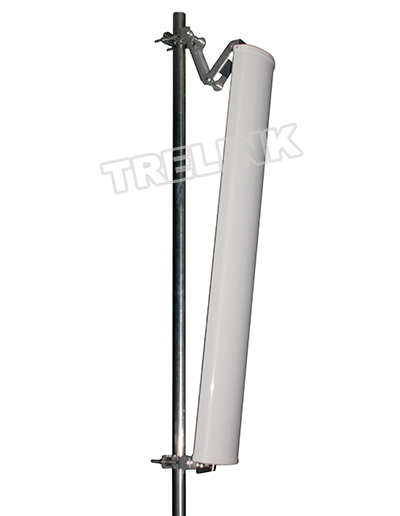

2.4 GHz 16 dBi 120 Degree Sector Panel WLAN Antenna

Model No.:TLSP-2400-16-120V

Place Of Origin: China

Brand Name: TreLink

Trelink’s 2.4GHz sectorial panel antennas combine high gain with a wide beam-widths,they are ideal choice for wireless ISP “cell” sites , popular application including 2.4 GHz ISM Band,IEEE 802.11b, 802.11g and 802.11n Wireless LAN ,Applications,Bluetooth® & Public Wireless Hotspot,WiFi & Wireless Video Systems and Wireless Internet Provider "cell" sites.They have great performance and strong resistance of all weather.

  • PRODUCT DETAIL
  • APPLICATION
  • ADVANTAGE
Electrical Specifications
Model TLSP-2400-16-120V
Frequency Range 2400-2500 MHz
Gain 16 dBi
VSWR <1.5:1
Polarization Vertical
F/B Ratio >20dB
Horizontal Beamwidth 120°
Vertical Beamwidth
Input Impedance 50 Ω
Maximum Power 100W
Lightning Protection DC Ground
Mechanical Specifications
Connector N Female
Antenna Dimension(length*width*height) 975*160*60 mm
Weight 3.8 kg /8.3 lb
Reflector Material Aluminum
Radome Material UV-PVC
Mounting Method Mast
Wind Velocity 210 km/h
Working Temperature -40~+65℃
Mounting Pole Ø38-Ø72 mm

APPLICATION

Applications:

* 2.4GHz WLAN WIFI system

* Support IEEE 802.11b, 802.11g and 802.11n wireless LAN systems

*Public Wireless Hotspot Coverage

*Wireless Internet Provider "cell" sites

ADVANTAGE

Advantage:

*Stable Performance

*Heavy-duty  Structure

*All Weather Operation

*RoHs Compliant
