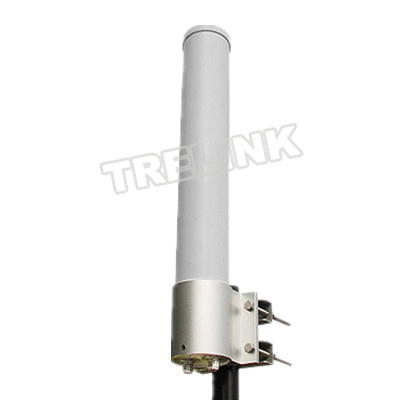

5 GHz 13 dBi Dual Polarity MIMO Omni directional Antenna

Model No.:TLOD-5158-13VH-2N

Place Of Origin: China

Brand Name: TreLink

The TreLink 5.1-5.8 GHz Omni-Directional Antenna combines dual polarization (vertical and horizontal ) with 13 dBi high gain in a single enclosure. This high performance antenna is suited for MIMO point-to-multipoint applications where long range and wide coverage is desired. It supports 802.11a 2x MIMO access points(APs) and bridges .

The antenna integrates two diversity antennas: one vertically and one horizontal polarized . It features 2*N Female type connectors, Mounting is easy with a dual u-bolt mast mounting kit.
For additional information,please check with our sales team!

SEND INQUIRY Chat Now!

PRODUCT DETAIL
APPLICATION
ADVANTAGE

Electrical Specifications
Model	TLOD-5158-13VH-2N
Frequency Range	5150-5850 MHz
Gain	13 dBi
VSWR	≤2.0:1
Polarization	Horizontal and Vertical
Horizontal Beamwidth	360°
Vertical Beamwidth	7°
F/B Ratio:	>30 dB
Cross-Polar Ratio:	>20 dB
Input Impedance	50 Ω
Maximum Power	100W
Lightning Protection	DC Ground
Mechanical Specifications
Connector	2*N Female
Antenna Dimention(diameter*length)	Ø62*550 mm
Weight	2 kg /4.4 lb
Radome Material	UV-PVC
Wind Velocity	210 km/h
Working Temperature	-40~+65℃
Mounting Pole	Ø40-Ø60 mm
