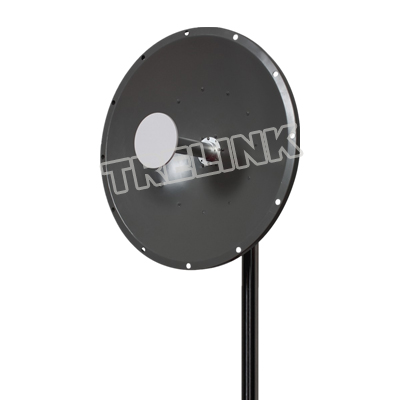

5.8 GHz 24 dBi WiFi Parabolic Dish Antenna

Model No.:TLPD-5800-24-04C

Place Of Origin: China

Brand Name: TreLink

The 5.8GHz Parabolic Dish WiFi Antenna is ideal for high performance long distance backhaul applications and directional 5.8GHz ISM / UNII band applications. It offers high performance and quality construction.This antenna can be oriented for either vertical or horizontal polarization.
This professional grade antenna is constructed of high quality aluminum alloy dish with powder coat paint finish for excellent mechanical and environmental performance. Perforated holes in the dish helps minimize wind loading.It is supplied with a 30 degree tilt and swivel mast mount kit.

It is your best choice, please feel free to contact us if any need!

  • PRODUCT DETAIL
  • APPLICATION
  • ADVANTAGE
Electrical Specifications
Model TLPD-5800-24-04C
Frequency Range 5725-5850 MHz
Gain 24 dBi
VSWR <1.5:1
Polarization Horizontal or Vertical
F/B Ratio 30 dB
Horizontal Beamwidth
Vertical Beamwidth
Input Impedance 50 Ω
Maximum Power 100W
Lightning Protection DC Ground
Mechanical Specifications
Connector N Female
Antenna Dimension Ф400 mm
Weight 3 kg /6.6 lb
Wind Velocity 210 km/h
Working Temperature -40~+65℃

APPLICATION

Applications:

* 5.8 GHz UNII and ISM Band Applications

* 5.8GHz Wireless LAN systems

*Point to Point/Point to Multi-point Systems

*Wireless Bridges, Backhaul Applications & Wireless Video Systems

ADVANTAGE

Advantage:

*High performance & Quality Construction
*Aluminum reflector dish with UV stable polymer finish
* Includes tilt and swivel mast mount kit
* Easy To Assemble

*All Weather Operation
*RoHS compliant
