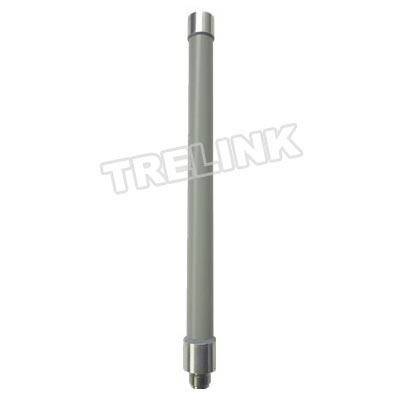

2.4-2.5/4.9-7.2 GHz 4/6dBi WiFi 6E Omni Antenna

*Covering 2.4-2.5/4.9-7.2 GHz Band

*4/6 dBi

* Low latency, increased network capacity

*wide coverage for 360° multi-point applications

*Superior Durability


The antenna featurs UV-PVC radome for durability aesthetics and long service life.

For more WiFi6/WiFi 6e antennas , please feel free to contact our sales to discusss your requirements.

Electrical Specifications
Model TLOD-2472-6V
Frequency Range 2400-2500/4900-7125 MHz
Gain 4/6 dBi
VSWR <1.5:1/2.2:1
Polarization Vertical
Horizontal Beamwidth 360°
Vertical Beamwidth 48°/28°
Input Impedance 50 Ω
Maximum Power 50 W
Lightning Protection DC Ground
Mechanical Specifications
Connector N Female
Antenna Dimension Ø20*220 mm
Weight 75g
Radome Material UV Resistance PVC
Reflector Material PCB
Wind Velocity 210 km/h
Working Temperature -40~+60℃
