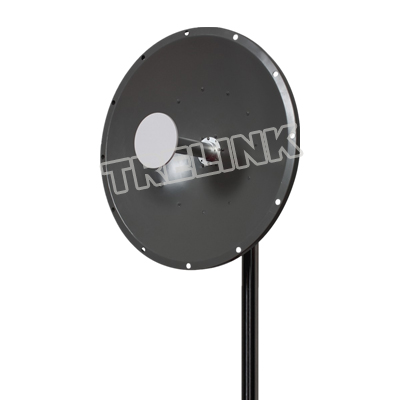

4.9-5.8 GHz Dual Polarity 28dBi MIMO Dish Antenna

Model No.:TLPD-4958-28-06VH-2N

Place Of Origin: China

Brand Name: TreLink

The Trelink's TLPD-4958-28-06VH-2N  is a superior performance  Parabolic Dish MIMO Antenna provides coverage in  band of 4900-5850 MHz frequency range with dual polarization.The popular applications including 5.1/5.3/5.4/5.8 GHz ISM and UNII Band Applications,4.9 GHz Public Safety Band, MIMO ,IEEE 802.11 a/n/ac Applications,WiMAX Applications,Long Distance Backhaul and Point to Point Data Links.
The reflector dish is constructed from high quality aluminum which gives it superior strength and excellent  environmental performance. The dish is coated in a UV-inhibited polymer for durability and aesthetics. The antenna is supplied with a super heavy duty tilt and swivel mast mount kit.

We designed and engineered this antenna for years of operation even under harsh conditions. Please don't t hesitate to contact us if any need !

Electrical Specifications
Model TLPD-4958-28-06VH-2N
Frequency Range 4900-5850 MHz
Gain 28 dBi
Polarization Horizontal and Vertical
F/B Ratio ≥35 dB
Isolation-dB ≥24 dB
Horizontal Beamwidth
Vertical Beamwidth
Input Impedance 50 Ω
Maximum Power 100W
Lightning Protection DC Ground
Mechanical Specifications
Connector 2*N Female
Antenna Dimension Ф600 mm
Weight 5.5 kg /12.1 lb
Wind Velocity 210 km/h
Working Temperature -40~+65℃
Mounting Pole Ø50-Ø75mm



*4.9 GHz Public Safety Band

* 5.1/5.3/5.4/5.8 GHz ISM and UNII Band Applications

*Long Distance Backhaul and Point to Point Data Links

* MIMO and IEEE 802.11a /n/ac Applications



*MIMO((Multiple-Input Multiple-Output))

*High gain, High F/B Ratio

*Adjustable dual polarity feed horn system allows the antenna to be configured for Dual Polarization (horizontal and vertical)

*Perforated dish reduce wind loading
*Aluminum reflector dish with UV stable polymer finish
* Includes tilt and swivel mast mount kit

*All Weather Operation

*RoHS Compliant
